AP 200

Technical Data
TR1, 2 and 3 Series Lister Petter Industrial Engine

Ranges: 5.5 – 28.5 kW; 7.4 – 38 bhp
Full Load Speed Range: 1500 – 2500r/min
A rugged heavy duty, air cooled, direct injection diesel engine

Engine Characteristics:

  • One, two and three cylinders
  • Direct injection
  • Naturally aspirated
  • Air cooled
  • Diesel fuelled
  • Anti-clockwise rotation, looking on the flywheel end
  • Fuel filter
  • Air cleaner
  • Hand or 12 volt electric starting

Design Features:

  • Designed for continuous operation in
    ambients up to 52°C (122°F)
  • Oil cooling by means of air flow over
    deep crankcase finning
  • Self regulating plunger type lubricating
    oil pump
  • 250 hour service intervals
  • Self-vent fuel system with individual fuel
    injection pumps
  • Mechanical governing:
    Variable speed – 900-2500r/min
    Fixed speed – 1500 and 1800r/min

Standard Equipment:

  • Flywheel
  • Flywheel housing with SAE4 flange
  • Inlet and exhaust manifolds
  • Spin-on lubricating oil filter
  • Fuel filter
  • Decompressor levers
  • Operators Handbook

Warranty:

  • Standard – two years from manufacture
  • Optional – five years from the date of sale (conditions apply)

Optional Items:

  • A comprehensive range of options allows the customer to select a specification which matches their requirement
  • Five year warranty from the date of sale (conditions apply)

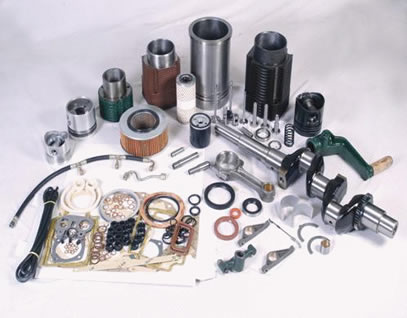

SPARES
